Description

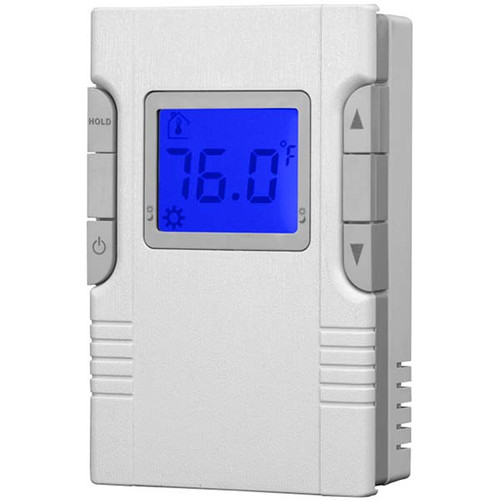

7-Day Programmable Thermostat — Maximize Comfort & Energy Savings

Program different temperatures for every day of the week. Reduce energy costs by automatically adjusting temperature during sleeping and away hours.

Technical Specifications

Model / SKU	28856359
Brand	King Electric
Thermostat Type	7-Day Programmable Digital
Stages	1 Heat / 1 Cool
Voltage	24V (Low Voltage)
Temperature Range	45°F to 99°F
Weight	0.8 lbs (0.36 kg)
Price	$52.16

Installation & Product Tips

System Compatibility: This is a 24V low-voltage thermostat compatible with gas furnaces, heat pumps, central air conditioners, and boilers. Verify your system uses 24V control wiring before purchasing.
Programming Periods: Set up to 4 temperature periods per day (Wake, Leave, Return, Sleep) for maximum energy savings. Program once and let the thermostat manage your comfort automatically.
Heat Pump Systems: If you have a heat pump, ensure you select a thermostat rated for heat pump operation (1 Heat / 1 Cool stages) to properly control the reversing valve.
C-Wire Requirement: Most programmable thermostats require a common (C) wire for continuous power. Check your existing wiring before installation. If no C-wire is present, a C-wire adapter may be needed.
Energy Savings: Proper programming can reduce heating and cooling costs by 10-15% annually. Set back temperature 7-10°F for 8 hours per day for optimal savings.

Frequently Asked Questions

Is this compatible with my HVAC system?

This 24V programmable thermostat is compatible with most residential HVAC systems including gas furnaces, central air conditioners, heat pumps, and boilers. Check your system's control board for 24V terminals (R, C, W, Y, G). Not compatible with line voltage electric baseboard heaters.

How many temperature programs can I set?

This 7-day programmable thermostat allows you to set different temperature schedules for each day of the week. Each day can have up to 4 programmable periods: Wake, Leave, Return, and Sleep. This allows you to optimize comfort and energy savings based on your daily routine.

Do I need a C-wire for installation?

Most digital programmable thermostats require a C-wire (common wire) for continuous 24V power. Check your existing thermostat wiring — if you see a wire connected to the "C" terminal, you have a C-wire. If not, a C-wire adapter or power extender kit may be needed. Contact our support team for assistance.

Can I use this with a heat pump system?

Yes — this thermostat supports 1 Heat / 1 Cool stages, making it compatible with heat pump systems. Ensure the thermostat has an O/B terminal for the reversing valve. For heat pump systems, select "Heat Pump" mode during setup to enable proper heating/cooling operation.

What warranty is included?

This thermostat is backed by the manufacturer's warranty. Register your product within 30 days of purchase to activate full warranty coverage. Contact our support team at https://www.hvacprosales.com/contact-us/ for warranty assistance.

Need Help Selecting the Right Thermostat?
Our HVAC specialists can help you match the correct thermostat to your system. Contact us with your system model number for a free compatibility check.
