HVAC Diagnostic Tools Guide: Essential Equipment for Modern Technicians

Introduction

In the dynamic and increasingly complex field of Heating, Ventilation, and Air Conditioning (HVAC), the ability to accurately diagnose system malfunctions is paramount. Modern HVAC systems integrate intricate electrical, mechanical, and thermodynamic components, demanding a sophisticated approach to troubleshooting. This guide serves as a comprehensive resource for HVAC professionals, detailing the essential diagnostic tools available today, their practical applications, and best practices for their effective use. By equipping technicians with a thorough understanding of these instruments, we aim to enhance diagnostic precision, improve service efficiency, and ultimately contribute to the longevity and optimal performance of HVAC systems. This document will delve into various categories of diagnostic tools, from fundamental electrical testers to advanced thermal imaging devices, providing actionable insights for both seasoned professionals and those looking to expand their diagnostic capabilities.

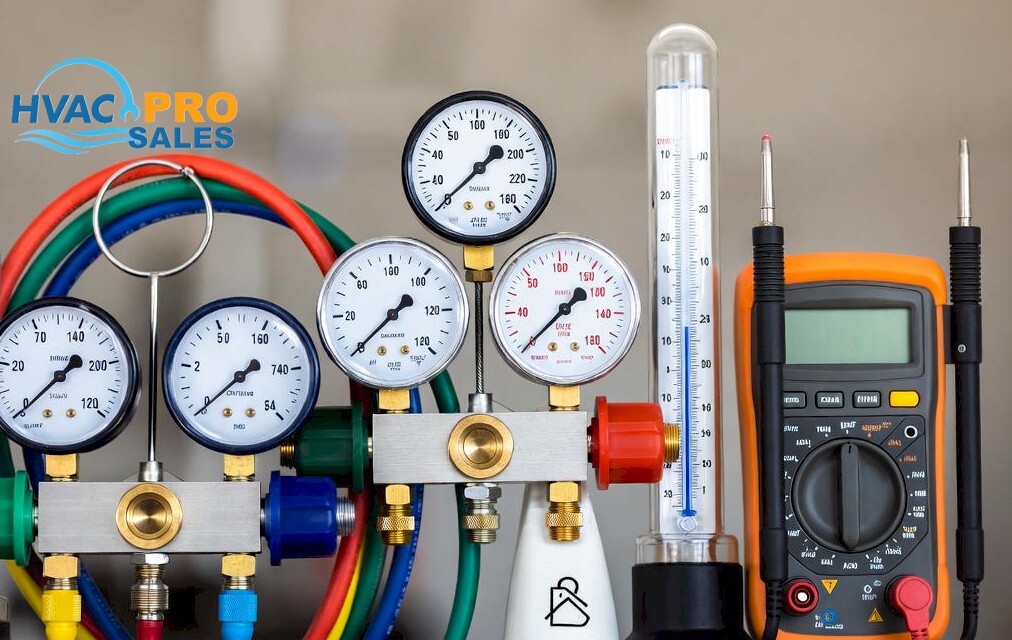

Essential Categories of HVAC Diagnostic Tools

Electrical Testing and Safety Verification Tools

Electrical components are the backbone of nearly every HVAC system, controlling everything from compressor operation to thermostat functions. Accurate electrical testing is not only crucial for diagnosing system failures but also for ensuring the safety of both the technician and the equipment. A robust understanding and proper application of electrical diagnostic tools are indispensable for any HVAC professional.

Digital Multimeters (DMMs)

Digital Multimeters are arguably the most fundamental and versatile tools in an HVAC technician's arsenal. They are designed to measure various electrical properties, including voltage (AC/DC), current (AC/DC), and resistance. In HVAC applications, DMMs are essential for troubleshooting control circuits, verifying motor windings, and checking the continuity of wiring and relays. Advanced DMMs often include specialized functions such as microamp testing, which is critical for accurately assessing flame sensors in gas furnaces, and capacitance testing for motor start/run capacitors. When selecting a DMM, technicians should prioritize models with True-RMS capabilities for accurate readings on non-sinusoidal waveforms, which are common in modern HVAC systems with variable frequency drives (VFDs).

Clamp Meters

Complementing the DMM, a clamp meter allows technicians to measure AC or DC current without breaking the circuit. This non-invasive method is particularly valuable for measuring the running current of motors and compressors, providing crucial data for assessing load conditions and identifying potential overloads or inefficiencies. Many modern clamp meters also incorporate DMM functionalities, offering a comprehensive solution for electrical diagnostics. Features like wireless data logging can be immensely beneficial, allowing technicians to monitor system performance over time and identify intermittent issues without constant physical presence.

Insulation Testers (Megohmmeters)

Insulation testers, or megohmmeters, are specialized tools used to measure the electrical resistance of insulation in motor windings, cables, and other electrical components. Over time, insulation can degrade due to heat, moisture, or mechanical stress, leading to shorts or ground faults. By applying a high DC voltage and measuring the resulting leakage current, an insulation tester can detect early signs of insulation breakdown, preventing catastrophic motor failures and ensuring system reliability. This proactive diagnostic capability is particularly important for large commercial and industrial HVAC systems.

Non-Contact Voltage Testers

Safety is paramount in HVAC work, especially when dealing with electrical systems. Non-contact voltage testers provide a quick and safe method to determine the presence of AC voltage in wires, outlets, and circuit breakers without direct contact. These pen-style devices illuminate or beep when voltage is detected, allowing technicians to rapidly verify if a circuit is live before proceeding with any work, thereby significantly reducing the risk of electrical shock.

GFCI Socket Testers

Ground Fault Circuit Interrupter (GFCI) outlets are critical safety devices designed to protect against electrical shock. GFCI socket testers are used to verify the proper wiring and functionality of these outlets. By plugging the tester into an outlet, technicians can quickly check for correct wiring configurations (e.g., open ground, open neutral, hot/neutral reverse) and test the GFCI trip function, ensuring that the safety mechanism is operational. This is particularly important in areas where water exposure is possible, such as near outdoor units or in mechanical rooms.

Airflow, Humidity, and Indoor Air Quality (IAQ) Testing Tools

Efficient airflow, optimal humidity levels, and superior indoor air quality are critical for the comfort, health, and energy efficiency of any building. HVAC technicians frequently encounter issues related to these parameters, necessitating a specialized set of diagnostic tools to accurately identify and resolve problems. Understanding the dynamics of air movement and composition is key to maintaining healthy and comfortable indoor environments.

Airflow Meters / Micromanometers

Poor airflow is a common culprit behind uneven heating or cooling, reduced system efficiency, and increased energy consumption. Airflow meters, often combined with micromanometers, are indispensable for diagnosing these issues. These devices measure static and differential pressure, air velocity, and volumetric airflow within ductwork. By precisely quantifying these parameters, technicians can identify restrictions, leaks, or imbalances in the air distribution system. For instance, measuring static pressure across a coil or filter can indicate excessive pressure drop, suggesting a dirty component or undersized ductwork. Accurate airflow measurements are vital for proper system commissioning and balancing, ensuring that conditioned air reaches all areas as designed.

Temperature and Humidity Meters

Temperature and humidity play a significant role in indoor comfort and air quality. High humidity can lead to mold growth and discomfort, while excessively dry air can cause respiratory issues and static electricity. Temperature and humidity meters allow HVAC professionals to accurately measure these environmental conditions. These tools are crucial for diagnosing issues related to thermostat calibration, dehumidifier performance, and overall system control. By comparing indoor and outdoor conditions, as well as supply and return air temperatures and humidity, technicians can pinpoint problems such as refrigerant undercharge/overcharge, inadequate ventilation, or malfunctioning humidifiers/dehumidifiers.

Particle Counters

Indoor air quality (IAQ) has become a growing concern for building occupants. Particle counters are advanced diagnostic tools that measure the concentration and size distribution of airborne particulate matter. These devices are particularly useful in sensitive environments like hospitals, laboratories, or homes with occupants suffering from allergies or respiratory conditions. By identifying the presence and levels of various particles (e.g., dust, pollen, mold spores), technicians can assess the effectiveness of filtration systems, identify sources of indoor air pollution, and recommend appropriate IAQ improvements, such as enhanced filtration or ventilation strategies.

Carbon Monoxide (CO) Meters

Carbon monoxide (CO) is a colorless, odorless, and highly toxic gas produced by incomplete combustion. In HVAC systems, CO can be a byproduct of malfunctioning furnaces, water heaters, or other combustion appliances. A CO meter is a critical safety tool that detects the presence and concentration of carbon monoxide in the air. HVAC technicians must use CO meters to check for leaks in flue pipes, heat exchangers, and other combustion-related components, especially during furnace maintenance or when responding to calls about suspected CO poisoning. Ensuring that combustion appliances are operating safely and not producing dangerous levels of CO is a paramount responsibility for HVAC professionals.

Refrigerant and System Performance Tools

Refrigerant plays a central role in the cooling and heating cycles of HVAC systems. Accurate measurement and management of refrigerant levels and pressures are vital for system efficiency, performance, and compliance with environmental regulations. Tools in this category enable technicians to assess the thermodynamic state of the refrigerant and identify issues such as leaks, undercharge, or overcharge.

Refrigerant Leak Detectors

Refrigerant leaks are a common problem in HVAC systems, leading to reduced efficiency, increased energy consumption, and environmental harm. Refrigerant leak detectors are specialized instruments designed to pinpoint the exact location of these leaks. Modern leak detectors utilize various technologies, including heated diode, infrared, and ultrasonic sensors, to detect even minute traces of refrigerant. Early detection and repair of leaks are crucial for maintaining system performance, preventing costly refrigerant loss, and complying with environmental regulations such as the Montreal Protocol and the AIM Act.

Manifold Gauges (Digital and Analog)

Manifold gauges are fundamental tools for measuring the pressure and temperature of refrigerant within an HVAC system. Traditional analog manifold gauges provide a visual indication of pressure, while digital manifold gauges offer greater precision, often incorporating built-in temperature sensors and superheat/subcooling calculations. These gauges allow technicians to monitor the high-side and low-side pressures of the refrigerant circuit, which are critical for diagnosing issues related to refrigerant charge, compressor performance, and heat exchanger efficiency. Proper interpretation of pressure readings, in conjunction with temperature measurements, enables technicians to accurately assess the system's thermodynamic cycle.

Vacuum Gauges

Before charging an HVAC system with refrigerant, it is imperative to evacuate the system to remove non-condensable gases and moisture. A deep vacuum is essential for ensuring the purity of the refrigerant and preventing system contamination, which can lead to premature component failure and reduced efficiency. Vacuum gauges, particularly digital micron gauges, are used to precisely measure the vacuum level during the evacuation process. These gauges measure pressure in microns, allowing technicians to confirm that the system has reached the necessary vacuum level (typically below 500 microns) before introducing refrigerant. Failure to achieve a proper vacuum can severely compromise system performance and longevity.

Thermal Imaging and Advanced Diagnostic Tools

As HVAC systems become more sophisticated, so do the tools required to diagnose them. Thermal imaging and other advanced diagnostic technologies offer non-invasive and highly efficient methods for identifying a wide range of issues that might be invisible to the naked eye or traditional measurement tools.

Thermal Imaging Cameras

Thermal imaging cameras, also known as infrared cameras, are powerful diagnostic tools that visualize temperature differences across surfaces. They detect infrared radiation emitted by objects and convert it into a visual image, where different colors represent varying temperatures. In HVAC applications, thermal cameras are invaluable for:

Identifying heat loss or gain: Pinpointing areas of poor insulation in ducts, walls, or windows.
Detecting overheating components: Locating electrical hotspots in panels, motors, or compressors, indicating potential failures.
Assessing airflow issues: Visualizing temperature patterns to identify uneven airflow distribution or blockages.
Locating refrigerant leaks: While not directly detecting refrigerant, thermal patterns can indicate temperature drops associated with leaks.
Evaluating heat exchanger performance: Observing temperature uniformity across coils to detect blockages or inefficiencies.

Thermal imaging provides a rapid, non-contact method for comprehensive system assessment, allowing technicians to quickly identify anomalies and prioritize repairs, thereby saving time and improving diagnostic accuracy.

Combustion Analyzers

For systems involving combustion (e.g., gas furnaces, boilers), a combustion analyzer is an essential tool for ensuring safety, efficiency, and compliance with environmental regulations. These devices measure the composition of flue gases, including oxygen (O2), carbon monoxide (CO), carbon dioxide (CO2), and nitrogen oxides (NOx). By analyzing these parameters, technicians can:

Optimize combustion efficiency: Adjusting air-fuel ratios to ensure complete combustion and minimize fuel waste.
Verify safe operation: Detecting dangerous levels of CO or other harmful emissions.
Troubleshoot combustion issues: Identifying problems such as clogged heat exchangers, faulty burners, or inadequate ventilation.

Modern combustion analyzers often provide real-time data, printouts of test results, and even calculate efficiency percentages, making them indispensable for thorough combustion system diagnostics and maintenance.

Choosing the Right Tools for Your HVAC Specialty

The diverse nature of HVAC work means that a technician's toolkit will vary significantly depending on their specialization. Whether focusing on residential comfort, commercial efficiency, or industrial power systems, selecting the appropriate diagnostic tools is crucial for effectiveness and safety.

Residential HVAC Technicians: Ensuring Comfort and Energy Efficiency

Residential HVAC technicians primarily deal with systems designed for homes, focusing on occupant comfort, energy efficiency, and indoor air quality. Their work often involves troubleshooting thermostats, control boards, basic electrical issues, and refrigerant charge. A well-rounded residential toolkit should include:

Must-Have Tools:
- Digital Multimeter (Fluke 116 HVAC Multimeter recommended): Essential for testing thermostats, control boards, flame sensors, and various voltages. Designed specifically for HVAC applications.
- Clamp Meter (Fluke 902 FC True-RMS HVAC Clamp Meter recommended): For safely measuring current draw on compressors and motors.
- Temperature and Humidity Meter: For verifying thermostat accuracy and assessing indoor comfort levels.
- Manifold Gauges: For checking refrigerant pressures and charge levels.
Advanced Tools for Enhanced Service:
- Thermal Imaging Camera (Fluke PTi120 Pocket Thermal Imager recommended): For quickly identifying insulation issues, air leaks, and overheating components.
- Combustion Analyzer: For ensuring the safe and efficient operation of gas furnaces.

Commercial HVAC Technicians: Balancing Performance and Compliance

Commercial HVAC technicians work on larger, more complex systems found in office buildings, retail spaces, and other commercial properties. These systems often involve sophisticated controls, larger equipment, and stricter compliance requirements. A commercial technician's toolkit should be more robust, including:

Core Tools:
- Advanced Digital Multimeter (Fluke 87V MAX True-RMS Digital Multimeter recommended): With features like a built-in thermometer and high-resolution display for precise measurements.
- Insulation Tester (Fluke 1587 FC Insulation Multimeter recommended): For proactive maintenance and troubleshooting of motor windings and cables.
- Airflow Meter / Micromanometer: For balancing air distribution systems and ensuring proper ventilation.
Specialized Equipment:
- Vibration Meter: For diagnosing mechanical issues in large motors, fans, and pumps.
- Power Quality Analyzer: For troubleshooting issues related to voltage sags, swells, and harmonics in commercial power systems.

Best Practices for Using HVAC Diagnostic Tools

Owning the right tools is only half the battle; using them effectively and safely is what truly sets a professional technician apart. Adhering to best practices not only ensures accurate diagnostics but also protects the technician, the equipment, and the occupants of the building.

Safety First: Personal Protective Equipment (PPE) and Safe Work Habits

Before any diagnostic work begins, safety must be the top priority. This includes:

Wearing appropriate PPE: This includes safety glasses, insulated gloves, and, when necessary, arc flash protection.
Following lockout/tagout (LOTO) procedures: Always de-energize and verify that equipment is powered off before performing any hands-on electrical work.
Using tools with the correct CAT rating: Ensure that your electrical testing tools are rated for the voltage levels you will be working with.

Systematic Troubleshooting: A Data-Driven Approach

Effective troubleshooting is a systematic process, not a guessing game. A data-driven approach involves:

Gathering information: Start by understanding the symptoms and the history of the problem.
Formulating a hypothesis: Based on the initial information, form a hypothesis about the potential cause of the issue.
Testing and measuring: Use your diagnostic tools to test your hypothesis and gather data.
Analyzing the results: Interpret the data to confirm or refute your hypothesis.
Making the repair: Once the root cause is identified, perform the necessary repair.
Verifying the repair: After the repair is complete, use your tools to verify that the system is operating correctly.

Regular Calibration and Maintenance of Tools

Your diagnostic tools are only as reliable as their last calibration. To ensure accuracy and longevity:

Follow manufacturer's calibration schedules: Most manufacturers recommend annual calibration for precision instruments.
Keep tools clean and properly stored: Protect your tools from damage, dust, and moisture.
Regularly inspect your tools for damage: Check for frayed wires, cracked screens, or other signs of wear and tear.

Frequently Asked Questions (FAQ)

1. What is the most important diagnostic tool for an HVAC technician?

While many tools are essential, the digital multimeter (DMM) is often considered the most important diagnostic tool for an HVAC technician. Its versatility in measuring voltage, current, and resistance makes it indispensable for troubleshooting a wide array of electrical issues that are fundamental to HVAC system operation. Coupled with a thorough understanding of system schematics and electrical principles, a DMM empowers technicians to accurately pinpoint electrical faults, ensuring both effective repairs and safety.

2. How often should HVAC diagnostic tools be calibrated?

The frequency of calibration for HVAC diagnostic tools depends on several factors, including the manufacturer's recommendations, the tool's usage frequency, and the precision required for the tasks performed. As a general best practice, critical diagnostic tools such as digital multimeters, clamp meters, and combustion analyzers should be calibrated annually. Tools used less frequently or for less critical measurements might be calibrated every two years. Regular calibration ensures the accuracy and reliability of measurements, which is vital for effective troubleshooting and compliance with industry standards.

3. Can I use a standard multimeter for HVAC electrical testing?

While a standard multimeter can measure basic electrical parameters, it is highly recommended to use an HVAC-specific multimeter for HVAC electrical testing. HVAC multimeters are designed with features tailored to the industry, such as microamp capabilities for flame sensor testing, capacitance measurements for motor capacitors, and often True-RMS functionality for accurate readings on non-sinusoidal waveforms common in HVAC systems. Additionally, HVAC-rated multimeters typically have higher safety ratings (CAT ratings) suitable for the voltage levels encountered in HVAC applications, providing enhanced protection for the technician.

4. What are the benefits of using a thermal imaging camera in HVAC diagnostics?

Thermal imaging cameras offer significant benefits in HVAC diagnostics by providing a non-invasive and rapid way to visualize temperature differences. This allows technicians to:

Quickly identify heat loss or gain in ductwork and building envelopes.
Detect overheating electrical components before they fail.
Visualize airflow patterns and identify blockages or inefficiencies.
Locate refrigerant leaks by observing temperature anomalies.

These capabilities lead to faster, more accurate diagnoses, reduced troubleshooting time, and improved overall system performance and energy efficiency.

5. How do smart diagnostic tools improve HVAC troubleshooting?

Smart diagnostic tools leverage advanced technology, often including wireless connectivity, data logging, and integration with mobile applications, to significantly improve HVAC troubleshooting. They offer several advantages:

Enhanced accuracy and data collection: Digital readouts and automatic data logging reduce human error and provide comprehensive historical data.
Remote monitoring and analysis: Technicians can monitor system performance from a distance, allowing for more efficient use of time and proactive maintenance.
Integrated calculations: Many smart tools automatically calculate key HVAC parameters like superheat, subcooling, and airflow, streamlining the diagnostic process.
Improved collaboration: Data can be easily shared with colleagues or clients, facilitating better decision-making and communication.

These advancements lead to more efficient, precise, and data-driven troubleshooting, ultimately enhancing service quality and customer satisfaction.

Conclusion

In conclusion, the modern HVAC landscape demands a sophisticated approach to diagnostics, underpinned by a comprehensive understanding and proficient use of specialized tools. A well-equipped toolkit, combined with a commitment to safety, continuous learning, and systematic troubleshooting, empowers HVAC professionals to tackle the complexities of contemporary heating, ventilation, and air conditioning systems with confidence and precision. Investing in high-quality diagnostic tools is not merely an expense but a strategic investment in efficiency, reliability, and professional excellence. By embracing these essential instruments and best practices, technicians can ensure optimal system performance, enhance energy efficiency, and deliver unparalleled service to their clients.
