HVAC Capacitor Size Chart (2026 Guide + How to Choose the Right One Fast)

Quick Answer: What size HVAC capacitor replacement do I need for my HVAC unit?

The correct HVAC HVAC capacitor size (measured in microfarads, MFD or µF) is determined by the compressor and fan motor specifications. A 2-ton AC typically uses a 35/5 MFD dual-run capacitor, a 3-ton uses a 40/5 MFD, and a 5-ton unit often requires a 60/5 MFD capacitor. Always verify the exact size on the unit’s data plate or the old capacitor’s label to prevent premature motor failure.

Table of Contents

1. Introduction to HVAC Capacitors
2. How to Read HVAC Capacitor Ratings
3. HVAC Capacitor Size Chart by AC Tonnage
4. Real Technician Scenario: The Danger of Oversizing
5. Verifying Capacitor Size with a Multimeter
6. Expert Summary: Key Takeaways for Technicians
7. Frequently Asked Questions (FAQ)

Introduction to HVAC Capacitors

As an HVAC technician, you know that a failed capacitor is one of the most common reasons for an AC or heat pump to stop working. Replacing it is a quick fix, but only if you have the exact right part. Using the wrong size capacitor can lead to premature motor failure, increased energy consumption, and an inevitable callback from an unhappy customer.

This guide provides a comprehensive HVAC capacitor size chart and explains the critical factors to ensure you select the correct replacement every time, whether you are working on a residential mini-split or a commercial rooftop unit.

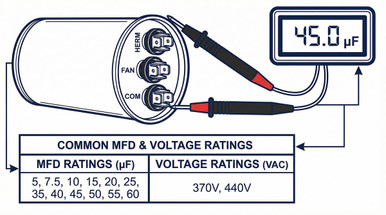

How to Read HVAC Capacitor Ratings

Before consulting the chart, it’s essential to understand the information printed on the capacitor itself. You will typically find two key ratings:

• Microfarad (MFD or µF): This is the capacitance rating and the most critical value. It indicates the capacitor’s ability to store an electrical charge. On dual-run capacitors, you will see two numbers, such as 40/5 MFD. The larger number is for the compressor motor, and the smaller one is for the condenser fan motor.
• Voltage (VAC): This rating indicates the maximum voltage the capacitor can safely handle. A common rating is 370/440 VAC. When replacing a capacitor, you can use one with the same or a higher voltage rating, but never a lower one.

HVAC Capacitor Size Chart by AC Tonnage

While the most reliable method is to check the specifications on the unit or the old part, this chart provides common capacitor sizes for standard residential AC and heat pump condensing units.

Disclaimer: This chart is for reference only. Always confirm the required capacitor size with the manufacturer's specifications for the specific unit you are servicing.

Real Technician Scenario: The Danger of Oversizing

Imagine arriving at a no-cool call on a hot July afternoon. The 3-ton AC unit has a bulging 40/5 MFD capacitor. You check your truck, but you only have a 45/5 MFD in stock. It’s tempting to install the larger capacitor just to get the customer cooling again.

What happens next?

Installing a capacitor with an MFD rating higher than specified alters the phase shift of the current going to the motor. This causes the motor to run hotter and less efficiently. Over a few weeks or months, the excess heat degrades the motor windings, eventually leading to complete motor failure. A simple replacement just turned into a costly motor replacement and a ruined reputation. Always wait for the exact OEM spec or keep a well-stocked inventory of correct sizes.

Verifying Capacitor Size with a Multimeter

If the capacitor’s label is worn off, rusted, or completely unreadable, you can use a professional HVAC multimeter with a capacitance setting to determine the correct MFD rating, provided the capacitor hasn't completely failed.

Step-by-Step Testing Process:

1. Disconnect Power: Turn off the disconnect switch and verify zero voltage at the contactor.
2. Discharge the Capacitor: Safely discharge the capacitor by shorting the terminals with an insulated screwdriver or a dedicated resistor tool.
3. Isolate the Component: Disconnect the wires from the capacitor terminals (take a photo first for easy rewiring).
4. Set the Multimeter: Set your multimeter to the capacitance (µF) setting.
5. Measure: Measure the capacitance between the HERM (compressor) and C (common) terminals, and between the FAN and C terminals.

The readings should be within +/- 6% of the rated MFD. If they are outside this range, or if the meter reads "OL" (Open Line), the capacitor needs to be replaced immediately.

Recommended HVAC Parts & Tools

• Professional HVAC Digital Multimeter
• HVAC Manifold Gauge Set (Digital & Analog)
• MRCOOL M10CW 10" Heavy Duty Adjustable Wrench |

Expert Summary: Key Takeaways for Technicians

• Always Match MFD: The microfarad (MFD) rating must match the original equipment specifications perfectly. Never oversize or undersize.
• Voltage Can Be Higher: You can replace a 370V capacitor with a 440V one, but never replace a 440V with a 370V.
• Dual-Run vs. Single-Run: Understand the difference. Dual-run capacitors support both the compressor and the fan motor, while single-run capacitors support only one.
• Check for Physical Damage: A bulging top, leaking oil, or severe rust are visual confirmations of a failed or failing capacitor.
• When in Doubt, Verify: Always use the unit’s data plate or a reliable multimeter to confirm the correct capacitor size.

Frequently Asked Questions (FAQ)

Q: Can I use a 40/5 MFD capacitor instead of a 35/5 MFD?

A: No. Using a capacitor with a higher MFD rating than specified alters the electrical current, causing the motor to overheat and fail prematurely. Always use the exact MFD rating required by the manufacturer.

Q: What does the +/- 6% tolerance mean on a capacitor?

A: This indicates the acceptable operational range for the capacitor's actual capacitance compared to its rated value. For example, a capacitor rated at 40 MFD is acceptable if it measures between 37.6 and 42.4 MFD. If it falls outside this range, replace it.

Q: Does the brand of the HVAC capacitor matter?

A: While OEM capacitors are always the safest bet, a high-quality aftermarket capacitor with the exact same MFD and voltage ratings will work correctly. Focus on reputable brands known for reliability in the HVAC industry.

Q: Can a bad capacitor cause high head pressure?

A: A bad condenser fan capacitor can cause the fan motor to stop running or run too slowly. Without proper airflow across the condenser coil, heat isn't rejected, leading to high head pressure and eventually causing the compressor to shut down on high-pressure limit.

Q: How long do HVAC capacitors typically last?

A: On average, an HVAC capacitor lasts between 10 to 20 years. However, factors like extreme heat, power surges, and undersized components can significantly shorten their lifespan.
